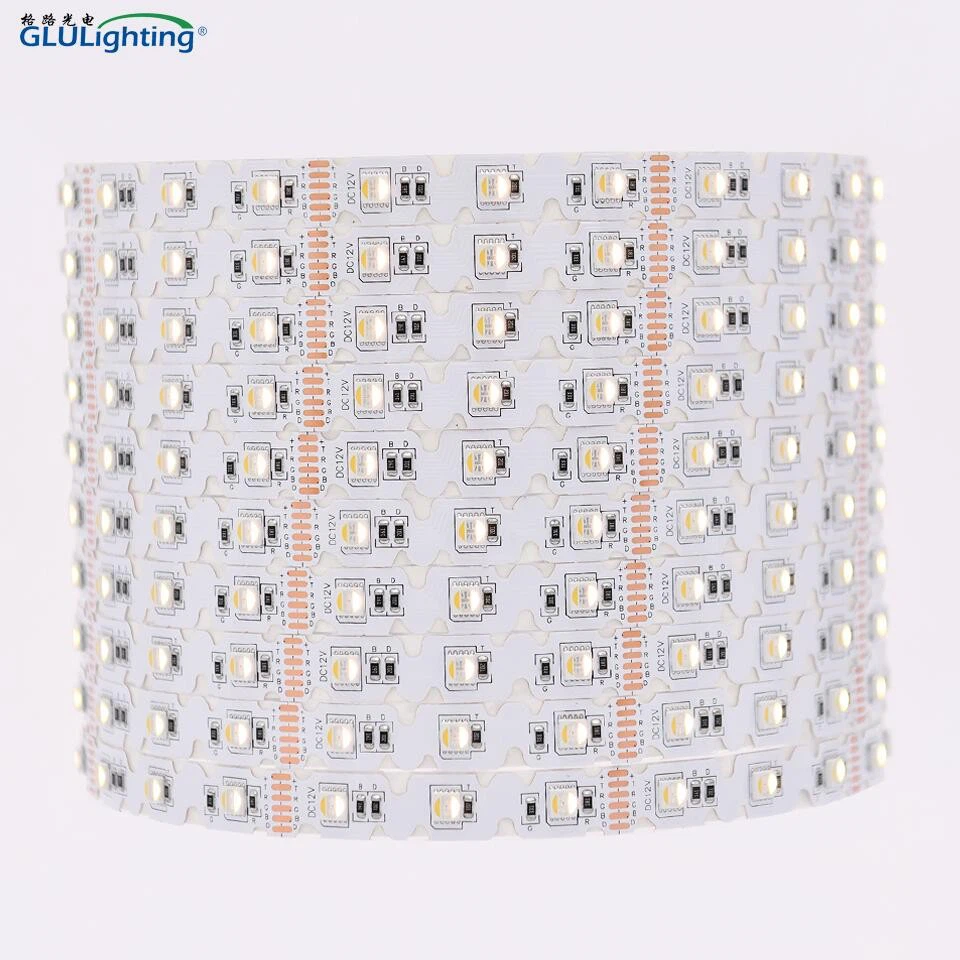

Cinema Chroma 12V RGB CCT Bendable LED Ribbon
● Bendable nrog 3LEDs (62.5mm) cuttable;
● 12mm dav PCB Tsim;
● RGBTD 5-in-1 SMD LED yog siv los ua lub teeb ci;
● High CRI value for Tungsteh(Warm white) & Daylight(Cool white), Ra>95;
● High TLCI Value for Tungsteh(Warm white) & Daylight(Cool white),TLCI>97;
● Haum rau xinesmas, studio thiab lwm yam.
Hauj lwm lawm
Kev tsis
GLU Teeb pom kev zoo, tsim nyob rau hauv 2011, yog ib qho ntawm cov ua xinesmas chroma 12v rgb cct bendable coj ribbon manufacturers thiab lwm tus neeg nyob hauv Suav teb. Muab kev pabcuam rau koj, peb zoo siab tos txais koj mus yuav qhov zoo thiab zoo nkauj xinesmas chroma 12v rgb cct bendable coj ribbon los ntawm peb lub hoobkas.
Cinema Chroma 12V RGB CCT Bendable LED Ribbon
Cinema Chroma 12V RGB CCT Bendable LED Ribbon yog ib qho yooj yim ribbon uas tuaj yeem khoov ntawm txoj hauj lwm nrog nkhaus, qhov twg siv rau tus qauv linear hom RGB CCT coj ribbon tsis ua tau. Cov sawb tuaj nrog nkhaus zoo li PCB uas tuaj yeem txiav tau rau txhua qhov kev taw qhia, ua rau nws zoo tagnrho rau qhov chaw nkhaus, thiab qhov twg sawb yuav tsum tau hloov cov lus qhia, thiab lwm qhov chaw nyuaj.
Cinema Chroma 12V RGB CCT Bendable LED Ribbon Cov yam ntxwv tseem ceeb
DC 12 V
Cinema Chroma 12V RGB CCT Bendable LED Ribboncomes nrog DC12V, thiab cuttable nrog txhua 3 leds, nrog 62.5mm.
nkhaus tsim PCB
Cinema Chroma 12V RGB CCT Bendable LED Ribbon los nrog nkhaus tsim PCB, ua rau cov sawb tuaj yeem khoov tau rau txhua qhov kev taw qhia raws qhov nkhaus.
RGB CCT 5-hauv-1 SMD
Xinesmas Chroma 12V RGB CCT Bendable LED Ribbon los nrog xinesmas zoo RGB CCT 5-hauv-1 SMD, nrog Ra saum 95, thiab TLCI saum 95.
UL teev thiab CE tau ntawv pov thawj
Cov ribbon tuaj nrog UL / CUL teev rau North America thiab CE Certificate rau Europe.
CRI, Spectrum & Wavelength
SPECTRUM THIAB WAVELENGTH rau 5-hauv-1 SMD Xim
Liab wavelength 620nm
Ntsuab wavelength 520.9nm
Xiav wavelength 470.4nm
CRI, SPECTRUM THIAB WAVELENGTH rau tungsten & Hnub ci
Khoom Dimension
Dab tsi PCB peb siv rau peb Cinema Chroma 12V RGB CCT Bendable LED Ribbon
Rau peb Cinema Chroma 12V RGB CCT Bendable LED Ribbon peb siv zoo flex PCB, nyob rau hauv qab thiab hauv qab txheej peb siv siab - kub resistant PI zaj duab xis, uas rau xim dawb raws li tus qauv, thiab lwm yam xim xws li dub / daj thiab lwm yam muaj. Nyob nruab nrab ntawm sab saum toj txheej tooj liab rau saum npoo hluav taws xob peb siv 1oz cooper thiab hauv qab lub ntsiab curcuit cooper siv 1oz tooj liab kom zoo dua tshav kub dissipation thiab zoo conductivity. Nruab nrab ntawm 2 txheej tooj liab peb siv cov txheej txheem kub kub tiv thaiv hluav taws xob kom tsis txhob muaj teeb meem luv luv vim yog cua sov.
Yuav ua li cas peb Cinema Chroma 12V RGB CCT Bendable LED Ribbon Packed?
Rau peb cov flex ribbon, peb tau ntim nrog cov yas los yog ntawv reels, thiab tom qab ntawd ntim nrog ESD hnab, rau lub hnab ESD, slivery xim rau tus qauv, thiab peb kuj muab cov xim dub, xim dawb lossis lwm yam tuaj yeem kho, thiab thaum kawg nrog 30 reels hauv ib lub thawv.
Vim li cas thiaj xaiv peb?
Peb tab tom nrhiav kev sib koom tes los nthuav peb txoj kev lag luam.
Professional Film lighting Chaw tsim tshuaj paus
Peb muaj ntau tshaj 16 xyoo kev nyob rau hauv coj kev lag luam thiab tshaj 10 xyoo kev rau siab CRI khoom rau zaj duab xis kev lag luam
Kev Tswj Xyuas Zoo
Peb muaj cov txheej txheem tswj hwm nruj raws li ISO, thiab peb muaj cov txheej txheem tswj xyuas nruj zoo thaum lub sijhawm tsim khoom.
High Quality LED Sawb Chaw tsim tshuaj paus
Peb xaiv tag nrho cov ntaub ntawv zoo tshaj plaws suav nrog 3oz lossis txawm tias 4 oz tooj liab rau peb cov PCB thiab tag nrho cov khoom coj ua tau zoo.
Tus kheej R & D
Peb muaj cov kws tshaj lij, uas muaj kev paub dhau los hauv cov khoom lag luam siab kawg, thiab peb muaj cov khoom R & D tus kheej kom tau raws li koj qhov kev xav tau sib txawv.
Kev pabcuam OEM & ODM
Dhau li ntawm peb tus kheej R & D cov khoom, peb kuj muab OEM thiab ODM rau peb cov neeg siv khoom thoob plaws ntiaj teb, rau cov khoom siv LED sawb, muab koj lub tswv yim rau peb, peb yuav muab cov khoom zoo tshaj plaws rau koj!
Kev xa khoom sai
Peb muaj saftey stocked PCB los xyuas kom meej tus me nyuam ceev, rau sampels nyob ib ncig ntawm 7 hnub, thiab ntau lawm nyob ib ncig ntawm 15 hnub.
Cov khoom pov thawj
Rau peb cov ribbon coj los nrog UL teev nrog cov ntaub ntawv naj npawb E495503 rau North Amercia, thiab daim ntawv pov thawj CE thiab RoHS rau Tebchaws Europe
Cov khoom siv
Cim npe nrov: xinesmas chroma 12v rgb cct bendable coj ribbon, Tuam Tshoj, manufacturers, lwm tus neeg, Hoobkas, customized
Technical Parameters
| Cov khoom npe | Cinema Chroma 12V RGB CCT Bendable LED Ribbon | ||
| Tshooj No. | GLU-S5L0200FP48-12V | Khoom Code | GLUE12CV012L0200FP03W48C2S |
| Ua Haujlwm Voltage Type. |
12 VDC |
Ua haujlwm Voltage Range | 8-13VDC qhov voltage) |
| LED Hom | 5050 RGBTD 5-hauv-1 SMD | LED Qty./m | 48 pcs |
| Xim | RGBTD | CRI Dawb | 95+ |
| Khoom Dimension (mm) |
3500 * 12 * 2mm (UL teev) 5000 * 12 * 2mm (CE Certificate) |
Product Dimension (hauv.) |
137.8 * 0.47 * 0.079 nyob rau hauv (UL Listed) 196.85 * 0.47 * 0.079in. (CE Daim Ntawv Pov Thawj) |
| Tooj thickness | 2oz (1oz+1oz) | Txiav taw tes | 62.5 hli (2.46 nti) |
| Forward Tam sim no / m | 1.44A | Forward zog / m | 17.28W |
| Saib lub kaum sab xis | 120 degree | Txheem Length | 3.5m (UL Listed) / 5m (CE Txuj) |
| Kev sib txuas | 6 pin bared kab | Kev teeb tsa | 3M 9080HL (Lwm yam xaiv tau) |
Hom Optical yam ntxwv
| Xim | Liab | Lub wavelength | 620-625 nm |
| Ntsuab | 520-525 nm | ||
| Xiav | 460-465 nm | ||
| Dawb | Tungsten | CCT | 2800K(2700-2900K) |
| Hnub ci | 6500K(6300-6700K) | ||
| Kev siv hluav taws xob / m (liab) | 3.45W | Lumen tso zis / m (liab) | 1 30 lm |
| Kev siv hluav taws xob / m (ntsuab) | 3.45W | Lumen tso zis / m (ntsuab) | 300 lm |
| Kev siv hluav taws xob / m (Blue) | 3.45W | Lumen tso zis / m (Blue) | 75 lm ua |
| Kev siv hluav taws xob / m (tungsten) | 3.45W | Lumen tso zis / m (Tungsten) | 2 10 lm |
| Kev siv hluav taws xob / m (hnub ci) | 3.45W | Lumen tso zis / m (hnub ci) | 250lm ua |
Nco tseg:
1. Lub siab ntev ntawm lumen fux thiab lub zog yog ± 10% vim qhov sib txawv ntawm cov khoom siv kuaj.
2. Cov kev txwv yuav hloov pauv yam tsis tau ceeb toom ua ntej.
