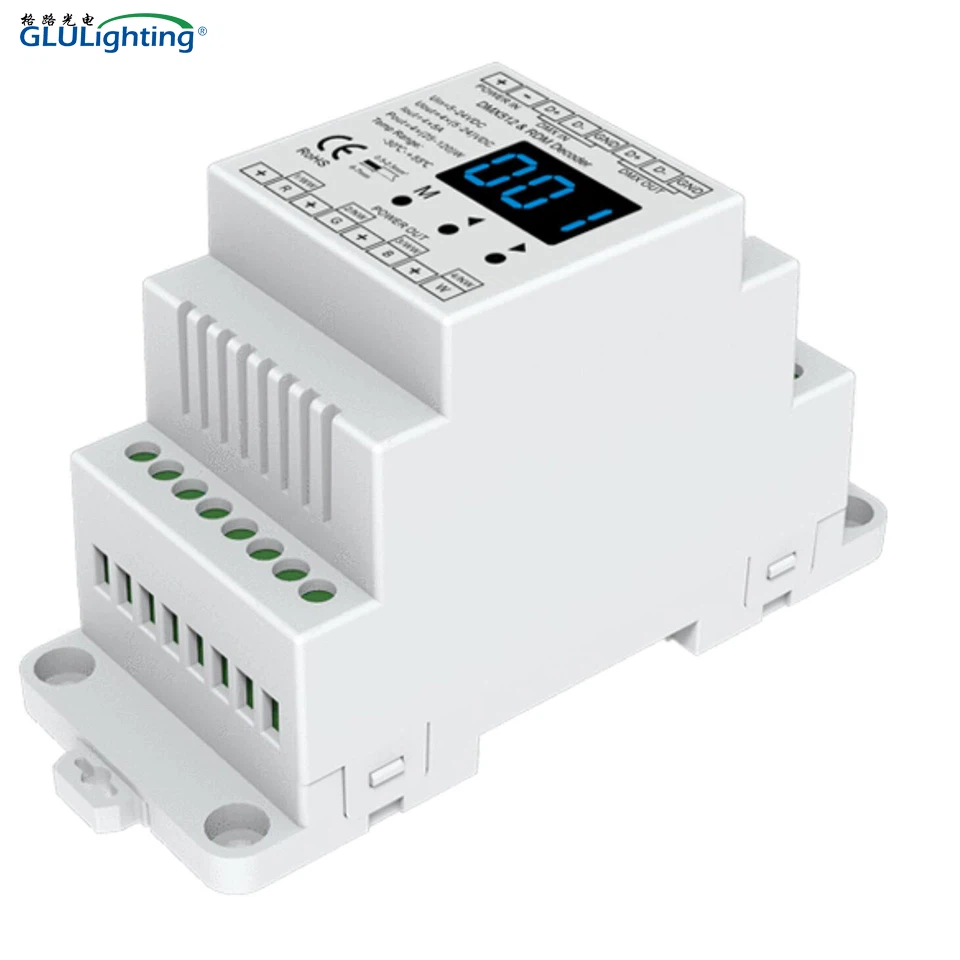

4Channels High Zaus IP65 DMX & RDM Decoder
● DMX512 & RDM Muaj nuj nqi;
● IP65 waterproof;
● Stand-alone muaj nuj nqi;
● Xya PWM zaus;
● Linear lossis logarithmic dimming;
● Cov khoom ua zauv.
Hauj lwm lawm
Kev tsis
Khoom Main Feature
4Channels High zaus IP65 Waterproof DMX & RDM Decoder
● Waterproof DMX512 decoder nrog IP65 ntsuam xyuas, haum rau sab nraum zoov thiab ntub dej.
● Ua raws li DMX512 / RDM tus qauv kev cai.
● Cov xov tooj digital, teeb DMX txiav txim siab pib chaw nyob los ntawm cov nyees khawm.
● 1/2/4 DMX channel tso zis xaiv tau.
● 16 ntsis (65536 qib) / 8 ntsis (256 qib) grey qib xaiv tau.
● PWM zaus 250/500/1000/2000/4000/8000/16000Hz xaiv tau.
● Logarithmic lossis linear dimming nkhaus xaiv tau.
● Stand-alone RGB/RGBW hom thiab 4 channel dimmer hom xaiv tau, uas yog tswj los ntawm cov nyees khawm nrog cov kev pab cuam built-in, tsis yog DMX teeb liab.
● Over-heat / Tshaj-load / luv Circuit Court tiv thaiv, rov ua haujlwm tau zoo.
Mechanical Structures & Installations
Mechanical Dimensions
Daim duab kev sib txuas
|
Rau RGBW Sawb |
|
Rau Bi-xim Sawb |
RGB hloov hom
| TSIS MUAJ. | Hom | TSIS MUAJ. | Hom | TSIS MUAJ. | Hom |
| P01 | Static liab | P11 | Ntsuab strobe | P21 | Liab daj du |
| P02 | Static ntsuab | P12 | Xiav strobe | P22 | Ntsuab cyan smooth |
| P03 | Static xiav | P13 | Dawb strobe | P23 | Xiav paj yeeb du |
| P04 | Static daj | P14 | RGB strobe | P24 | Xiav dawb du |
| P05 | Static cyan | P15 | 7 xim strobe | P25 | RGB + W smooth |
| P06 | Static ntshav | P16 | Liab ploj hauv thiab tawm | P26 | RGBW smooth |
| P07 | Static dawb | P17 | Ntsuab fade nyob rau hauv thiab tawm | P27 | RGBY smooth |
| P08 | RGB dhia | P18 | Blue ploj hauv thiab tawm | P28 | Yellow cyan ntshav qab zib |
| P09 | 7 xim dhia | P19 | Dawb fade nyob rau hauv thiab tawm | P29 | RGB smooth |
| P10 | Liab strobe | P20 | RGBW ploj hauv thiab tawm | P30 | 6 xim du |
Dimming nkhaus teeb
Linear dimming nkhaus Logarithmic dimming nkhaus
★ Rau lwm cov ntaub ntawv hais txog kev ua haujlwm kom ntxaws pls xa mus rau tus neeg siv phau ntawv lossis sab laj nrog peb kev muag khoom.
Cim npe nrov: 4channels siab zaus ip65 dmx & rdm decoder, Tuam Tshoj, manufacturers, lwm tus neeg, Hoobkas, customized
Product Technical Parameters
| Input thiab Output | Kev nyab xeeb thiab EMC | ||
| Input voltage | 12-36VDC | EMC tus qauv (EMC) | ETSI EN 301 489-1 V2.2.3 |
| Input tam sim no | 20.5A | ETSI EN 301 489-17 V3.2.4 | |
| Output voltage | 4 x ({1}})VDC | Kev Nyab Xeeb Txuj (LVD) | EN 62368-1:2020+A11:2020 |
| Cov zis tam sim no | 4CH, 5A/CH | Daim ntawv pov thawj | CE, EMC, LVD |
| Tso zis zog | 4 x (60-180)W | Pob | |
| Cov zis hom | Tsis tu ncua voltage | Loj | L256 x W 120 x H 46 mm |
| Warranty thiab Kev Tiv Thaiv | Qhov hnyav tag nrho | 0.397kg | |
| Warranty | 5 xyoo | Ib puag ncig | |
| Kev tiv thaiv |
Rov qab polarity Tshaj kub Tshaj-load Luv luv |
Ua haujlwm kub | Ta: -30 degree ~ +55 degree |
| Case kub (Max.) | T c: + 85 degree | ||
| Kev ntsuas IP | IP65 | ||
